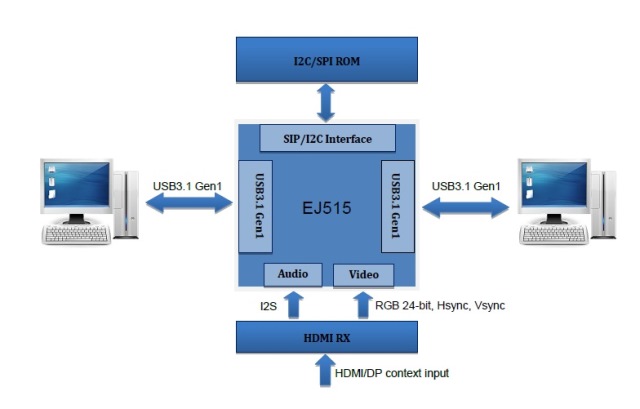

EJ515 is an USB 3.1 Gen1 capture IC supporting 1080p/60fps full high definition video through RGB and I2S inputs. When EJ515 connects to USB 2.0 platform, it can support MJPEG compression to provide high video quality on USB 2.0 limit bandwidth.
EJ515 can record original contents from various sources such as smart device, camcorder, set-top box, DVD/BD player and game console.
EJ515 can also perform the USB 3.1 Gen1 HID function and provide key-board / Mouse sharing.
EJ515 uses OS native HID, UVC and UAC drivers and is compatible with Microsoft Windows, Mac OS and Linux.

• Support USB3.1 Gen1 Specification

• Support standard HID interface for Key-board / Mouse sharing

• Support standard USB Video Class (UVC)

• Support standard USB Audio Class (UAC)

• Support video output YUY2 format and resolution up to 1920x1080p @60Hz in USB3.1 Gen1

• Support video output MJPEG format and resolution up to 1920x1080p @60Hz in USB2.0 or USB3.1 Gen1

• Support 44.1KHz and 48KHz PCM stereo audio output

• Support digital video input interface: RGB 24-bit, Hsync, Vsync, Data Enable

• Support digital audio input interface: I2S, Data formats of 16-bit, 16-bit stereo (Two channels)

• Support SPI / I2C interface

• Support In System Programming (ISP) Firmware Update by USB port

• It is compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS
