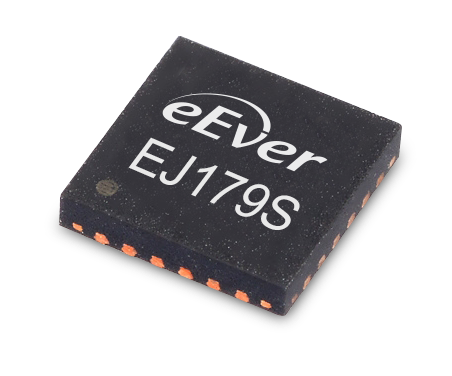

EJ179S
產品說明
USB Type-C Switch Controller
Introduction
EJ179S is a functional switch which is used for routing the SuperSpeed (SuperSpeedPlus) USB signal pairs. It can be used for USB Type-C based port implementation or any other implementation which requires routing the SuperSpeed (SuperSpeedPlus) USB signal pairs.
Figure 1-
 |

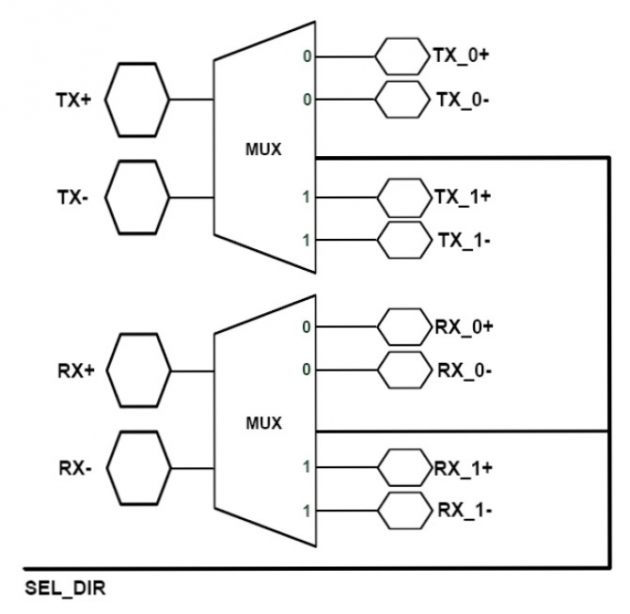

| Figure 1‑1. EJ179S Block Diagram |
Features
USB SuperSpeed (SuperSpeedPlus) Switch
- Support up to 10Gbps signaling
- 4 to 2 differential, bi-directional channel multiplexer/de-multiplexer switch with Hi-Z outputs
- Support up to 10Gbps signaling
- 4 to 2 differential, bi-directional channel multiplexer/de-multiplexer switch with Hi-Z outputs
